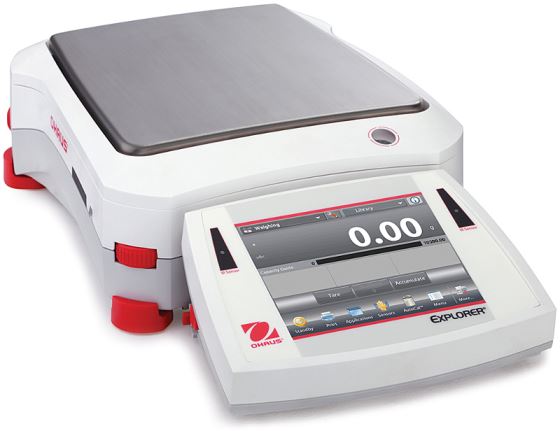

Ohaus Explorer Precision - EX2202/E

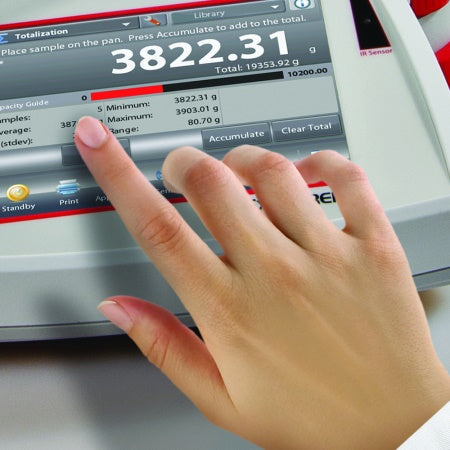

A large color touchscreen gives access to the advanced application modes and icon-driven application software features such as user manager, library, and minimum weight indication.

Explorer features fast stabilization times, optimized linearity and repeatability specifications, enhanced vibration filtering and the choice of traditional calibration or AutoCal models.

• Explorer's sturdy modular design includes metal housing and a display that can be separated from the weighing base and tower- or wall-mounted for easy viewing in any workspace.
• Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages
• Construction: Modular design, metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors and flip/sliding top door (1mg models only), illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, four touchless sensors, full housing in-use cover
• Display: Full-color 5.7 in VGA, touch screen
• Applications: Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics
• Communications: RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
• Power: AC adapter (included)

Net Weight: 55 lb
Readability: 0.01
Readability UOM: g
Maximum Capacity: 2200
Maximum Capacity UOM: g
Maximum Capacity in Grams: 2200
Linearity: 0.02 g
Repeatability, typical: 0.01 g
Capacity / Resolution: 2,200 g x 0.01 g
Platform Dimensions: 7.5 in x 8 in (190 mm x 200 mm)
Repeatability, typical: 0.01 g
In-Use Cover: included
Units of Measurement: Baht, Carat, Custom, Grain, Gram, Hong Kong Tael, Kilogram, Milligram, Mesghal, Momme, Newton, Ounce, Ounce Troy, Pennyweight, Pound, Singapore Tael, Taiwan Tael, Tical, Tola
Platform Construction: Stainless Steel
Display: 5.7 in (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Communication: RS232 (Included), USB (Included), 2nd RS232 (Available as an Accessory), Ethernet (Available as an Accessory)
Power: AC Adapter (Included)
